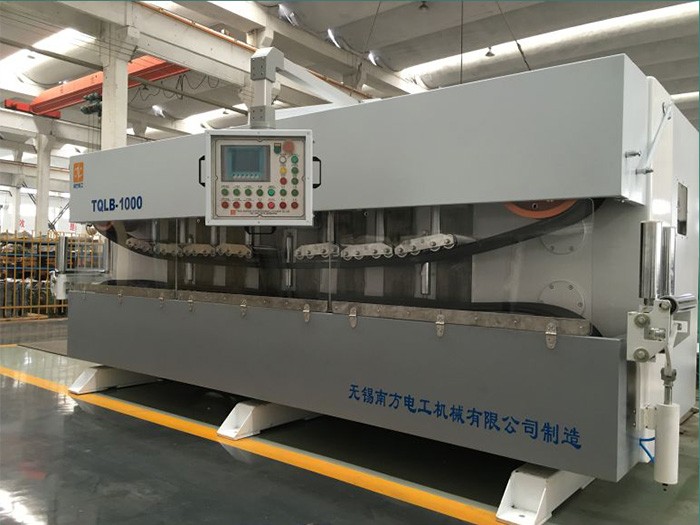

Submarine cabling machine is dedicated tractor for sea laying of submarine cables,referred cabling machine.Cabling machine installed directly in the sea boat.When a boat sailing on the sea,submarine cabling machine pull out from the cabin,directly pit cable into the sea.Traction speed of cabling machine tracking ship sailing speed and cablessinking speed,keep matching relationship.Non effected by waves,wind and other external factors,the submarine cable running to a predetermined area,and the cable is not damaged.

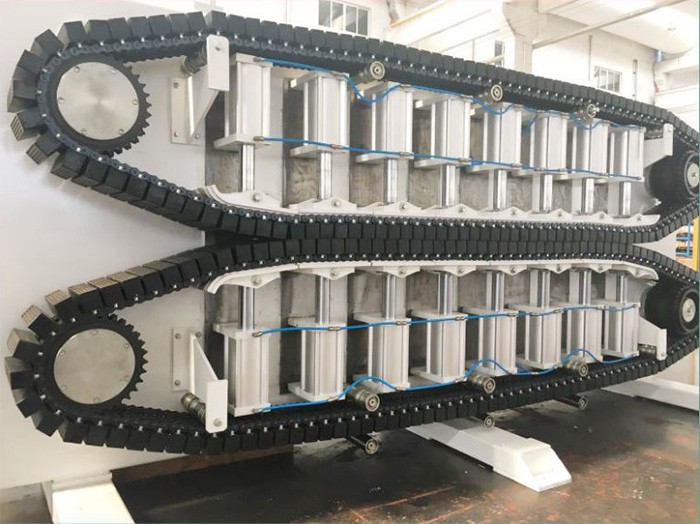

1.Traction function of cabling machine follows the caterpillar structure.That is,from the upper and lower cylinder control belts pressing and releasing,

Cable is clamped by belts and run follows the belts,since cable size is big,thus the distance between two belts is big too.

2.In order to meet the desired friction.Belts is teeth structure,track wheel is correspondingly teeth wheel,thus incre-asing the contact area between the belt and the track wheel,which would be increased friction.

3.In order to improve the response capacity of the cabling machine,we must select the inverter motor power and a small ratio of the transmission chain according to the size of the required traction.To do this,on a cabling machine,we designed specifically for bulk transmission.With this design,the cabling machine is formed by the motor,reducer,bulk transmission to a drive chain wheel,ensures a rapid response in the sailing speed,to provide sufficient traction.In order to prevent failure of electrical,there are equipped clutch and pneumatic brake,to meet different working modes.

4.In order to adapt cable different diameters and cable joints,cabling machine inlet and outlet are installed the pneumatic guide roller.The device drive by two curved rod cylinder,two rod drive two vertical guide rollers along the horizontal rail rapid collapse or separately.This unit is more efficiency compare with by manually adjusting the distance between the two vertical guide rollers.

5.In order to meet the needs of performance cabling operations at sea,preventing the cor-rosive sea air on the body with the erosion of the cabling machine body made embalmed.In many places have adoptedsta in less steel material.Improve the degreeof protection in the electrical and water requirements,and will make everything possible to prevent adverse envir-onmental erosion on the body,to extend the life of the machine.
